扎花板

Model: tg

Add to Inquiry

Product Rating:

Technical Data

Product Details

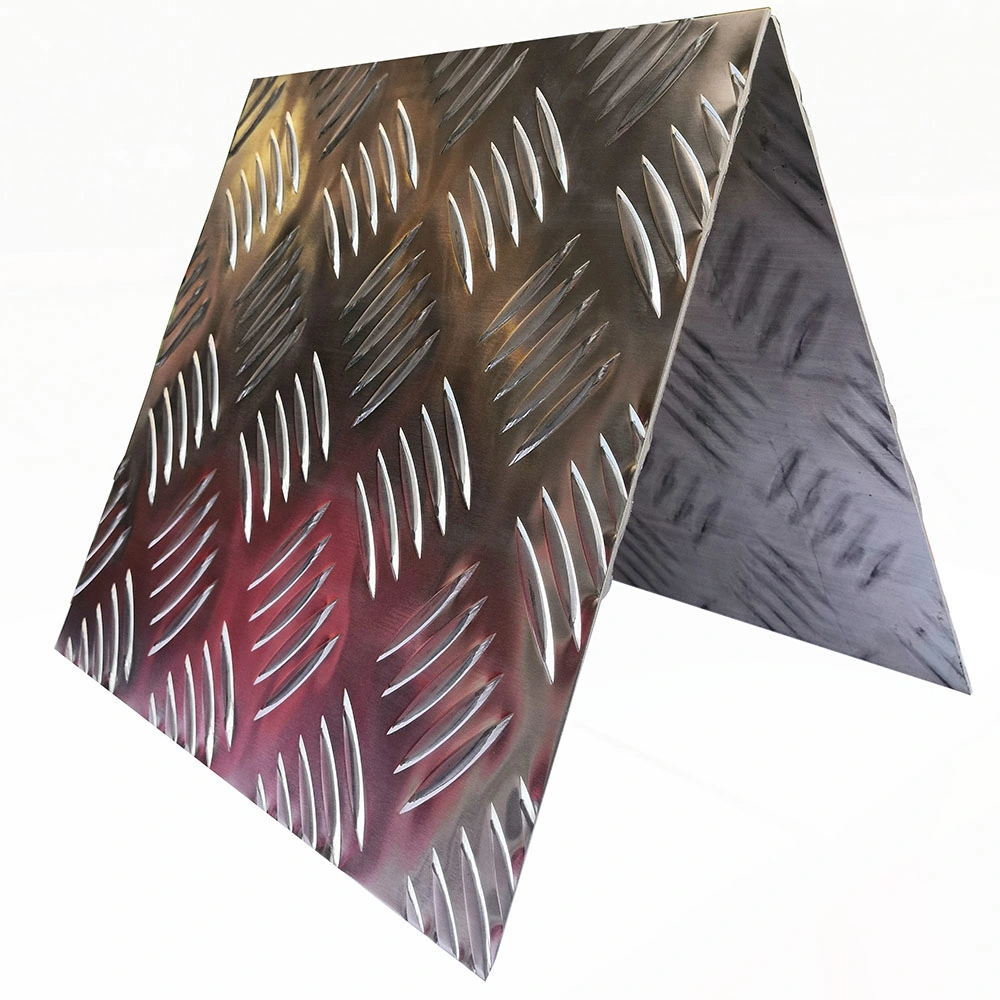

Products	Aluminum Checkered Plate
Alloy State	HO, H12,H14,H18,H22,H24,H32,H111,H112,H114, T6 etc.
Thickness	1.2mm-100mm
Width	600mm-1650mm
Rolling Material	DC & CC
Grade	1Series: 1050,1060,1070,1100 etc. 2Series: 2A06,2A10,2A12,2A16,2014,2017,2024,2124,2224,2524 ect. 3Series: 3003,3004,3005,3A21,3105 etc. 4Series: 4032,4043,4047 etc. 5Series: 5052,5754,5083, 5086, 5056,5652, 5154, 5254, 5454 etc. 6Series: 6061,6062,6083 ect. 7Series: 7A01,7A04,7005,7050,7075 etc. 8Series: 8011,8079 etc.

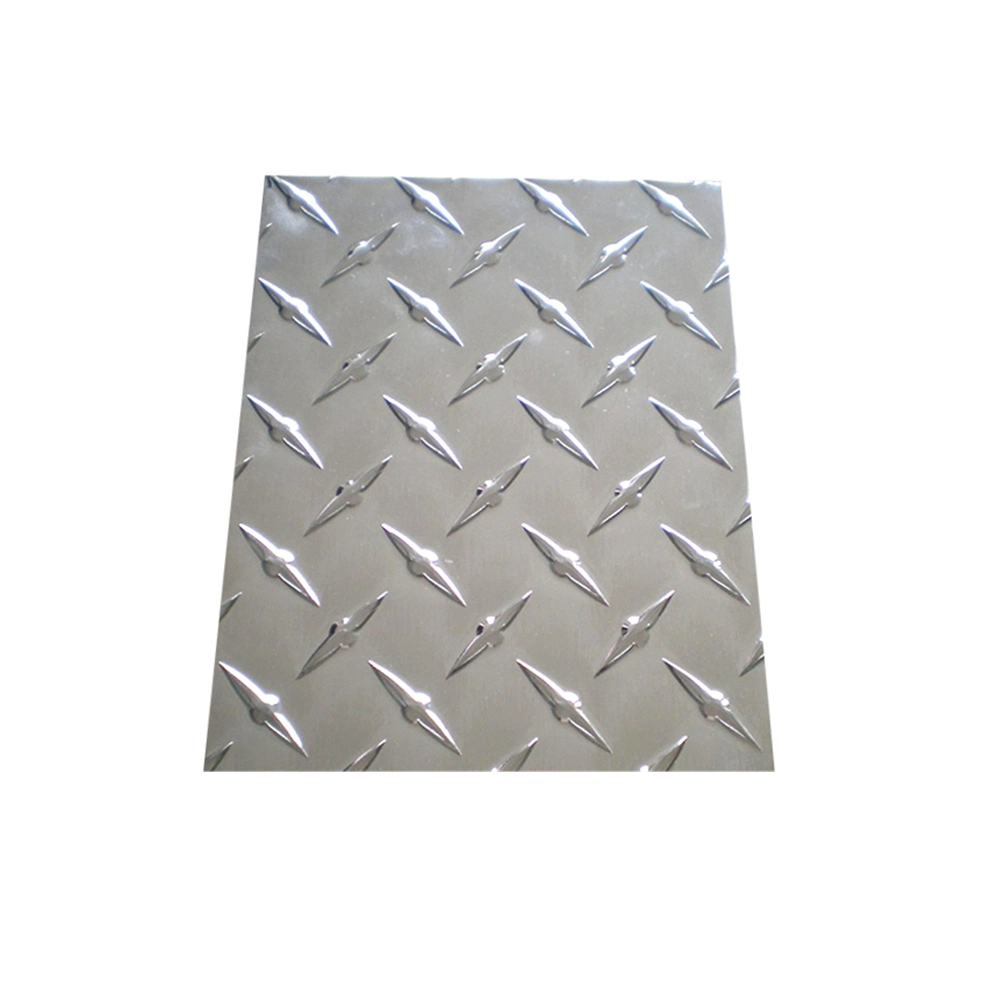

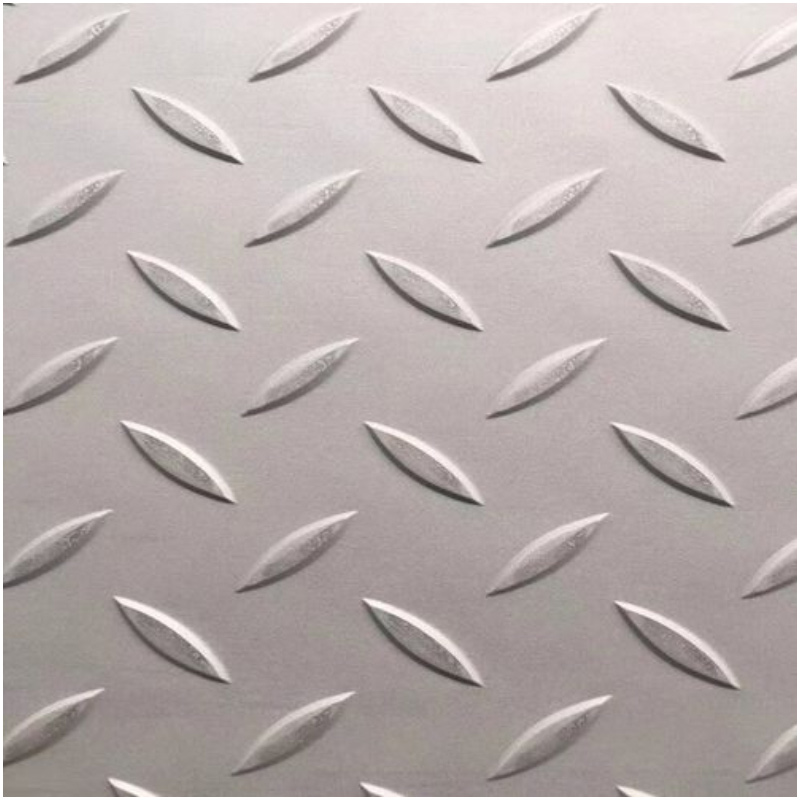

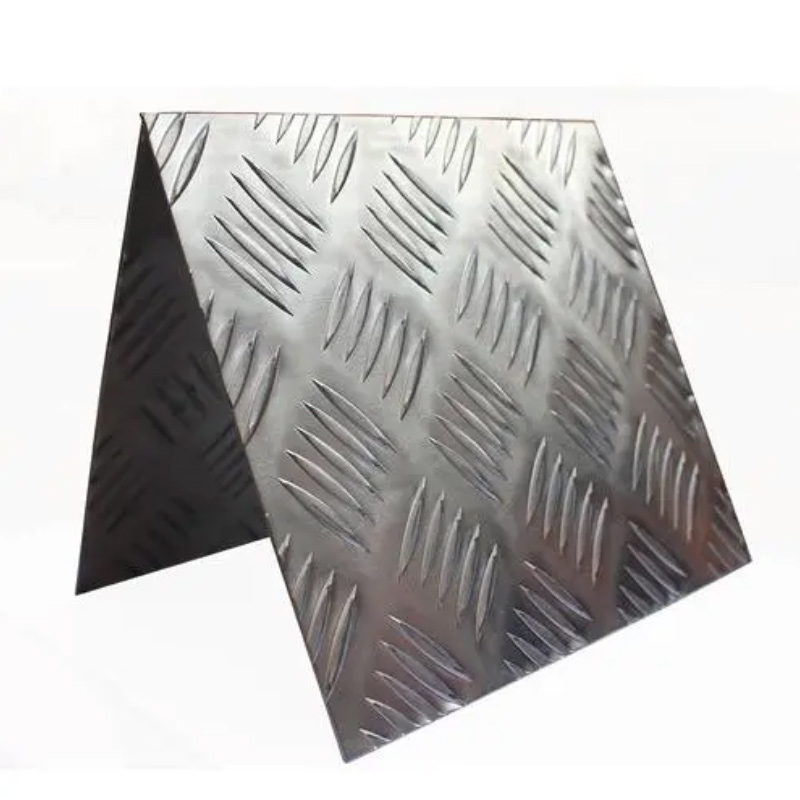

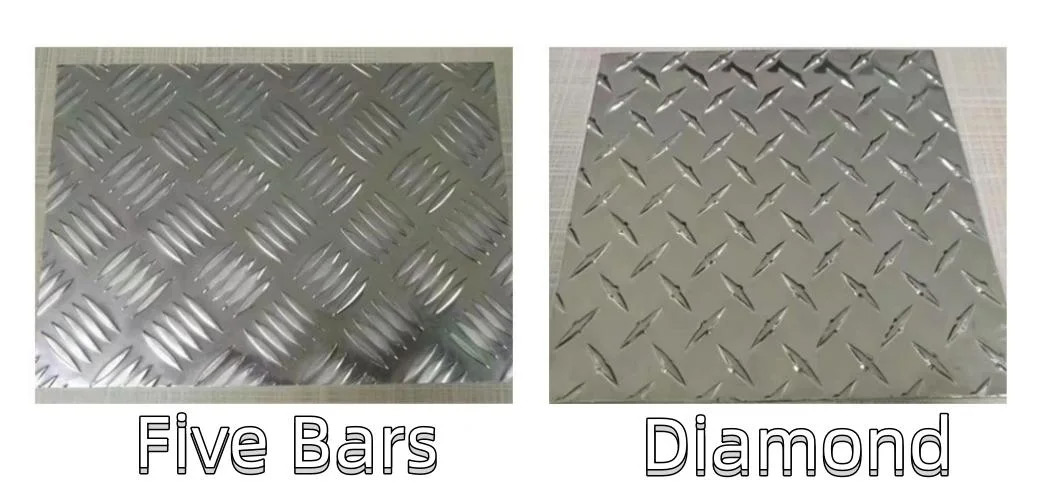

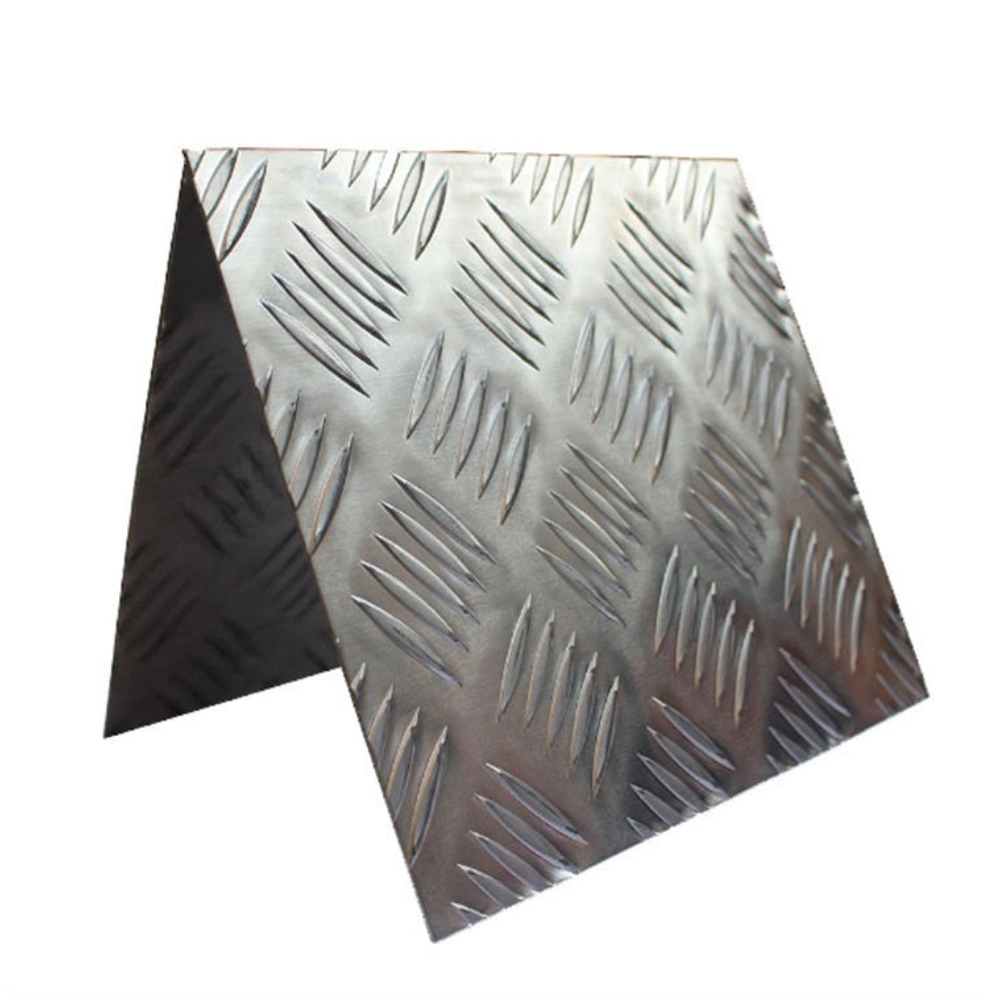

Pattern	Big 5 bar pattern, Small brighten 5 bar, Diamond plate, 2 bar, Small 3 bar, etc.
Surface	Embossed Brighten Surface
Standard	GB/T, ASTM, EN
Certificates	ISO, SGS
MOQ	5 MT-8MT for Customized Production of each size, excluding stock

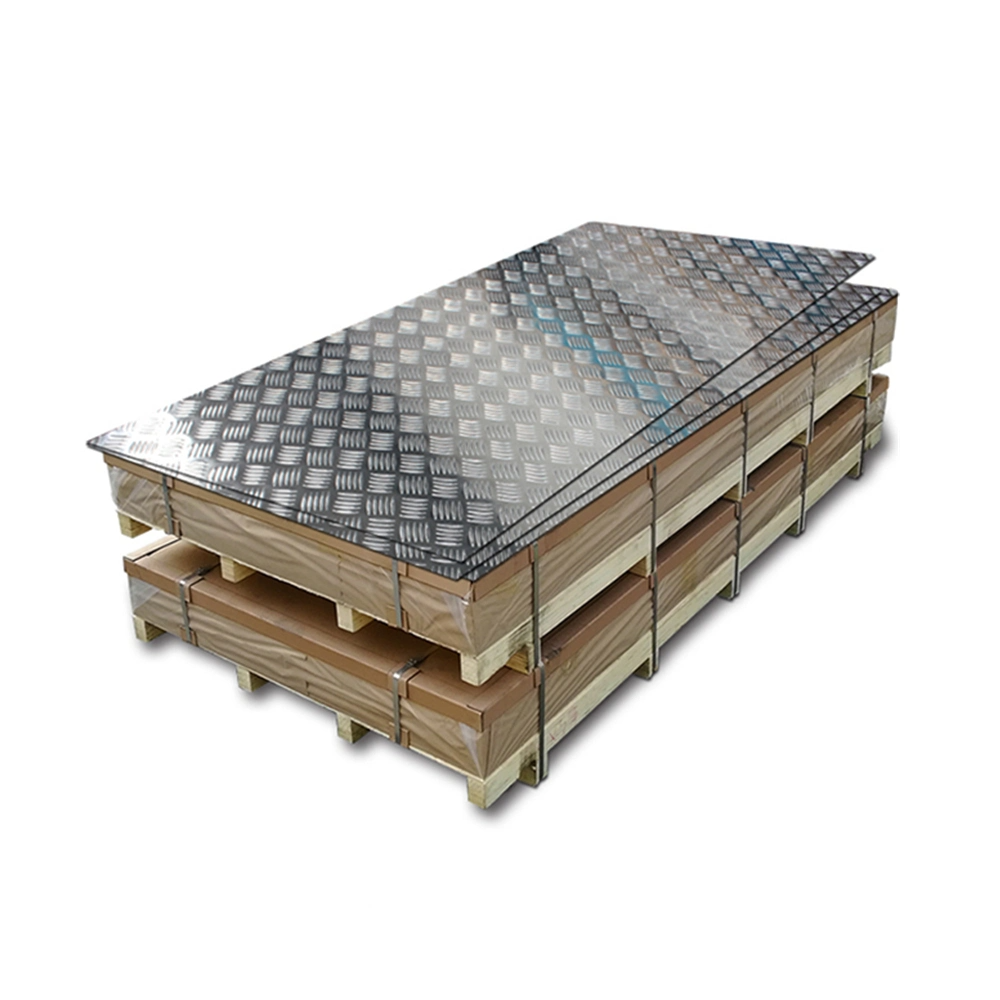

Packaging	Paper-interleaf each sheet+Water-proof Film+Wooden Pallets
Origin	China
Delivery	15-20 days for CC route; 20-25 days for DC route production
Loading Port	Any port of China, Tianjin & Qingdao in priority
Our Advantage	No oil stain, no scratches, quite flatness; High Brightness; Plump and Uniform Pattern
Bar Thickness	Bottom Thickness	Bar Thickness
	1.2 mm-1.4 mm	0.4 mm-0.6 mm
	1.4 mm-1.9 mm	0.8 mm-1.0 mm
	1.9 mm-3.5 mm	1.0 mm-1.2 mm
	3.5mm-8.0 mm	1.2mm and up
